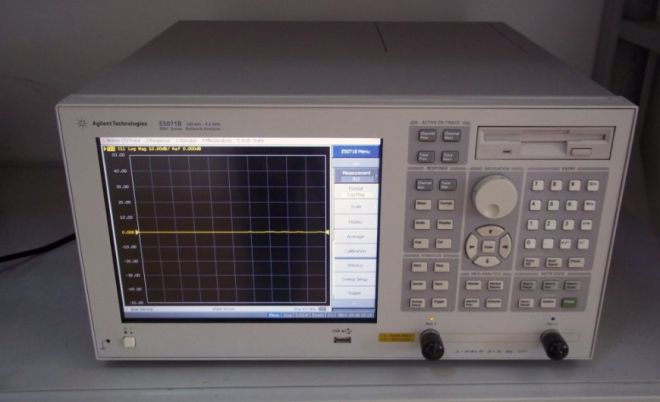

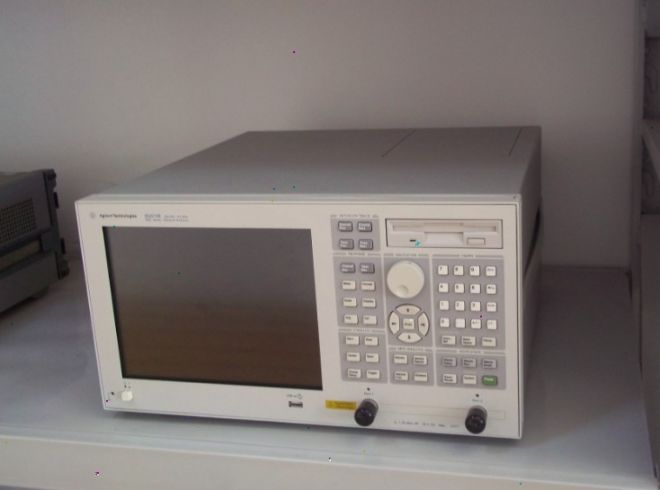

儀器名稱: Agilent E5071B-285 2-port Test Set--聯系電話 18912657535 儀器型號: Agilent E5071B-285 儀器品牌: Agilent 儀器指標: 300 kHz至8.5 GHz
主要特性與技術指標
- 在測試端口處保持125 dB動態范圍（典型值）
- 掃描速度：9.6微秒/點
- 跡線噪聲：0.001 dB rms
- 集成的2、3和4端口，帶有平衡測量能力
- 夾具嵌入/反嵌和端口特性阻抗轉換
- 用于變頻設備的頻率偏置模式
- 內置Visual Basic ® for Applications（VBA）
- 測量向?qū)е周浖?/a>
描述
Agilent E5071B網絡分析儀提供射頻器件測量能力。其先進的體系結構通過減少掃描次數來完成多端口測量，進一步提高了測試吞吐率。
Description
The E5071B network analyzer offers fast and accurate measurements for RF components. The advanced architecture minimizes the number of sweeps to complete a multiport measurement and further improves test throughput.
Discontinuance Notice: The E5070B/71B has been discontinued as of Oct. 1, 2007 and end of support life will be Oct. 1, 2012. The E5071C is the replacement product. For more detail please visit here.
View: ENA Series Video Demos
Discuss calibration, applications, programming topics: Network Analyzer Discussion Forum
Choose accessories: Network Analyzer Accessories
Support: ENA Series Service & Support Home Page
Agilent
ENA 2, 3 and 4 Port
RF Network Analyzers
E5070B 300 kHz to 3 GHz
E5071B 300 kHz to 8.5 GHz
E5091A Multiport Test Set
E5092A Configurable Multiport Test Set
Ordering information
E5070B 300 kHz to 3 GHz network analyzer
E5071B 300 kHz to 8.5 GHz network analyzer
Option E5070B/71B-008 Frequency-offset mode
Option E5070B/71B-010 Time domain analysis capability
Option E5070B/71B-790 Measurement wizard assistant software
Option E5070B/71B-214 Two-port S-parameter test set
Option E5070B/71B-314 Three-port S-parameter test set
Option E5070B/71B-414 Four-port S-parameter test set
Option E5070B/71B-016 Touch screen color LCD
Option E5070B/71B-1E5 High stability frequency reference
E5091A Multiport test set
Option E5091A-009 9-port test set
Option E5091A-016 13/16-port configurable test set
